Big Fans For Outside

Big Fans For Outside
Details:
We make these big fans for outside work environments. This 9-inch model is designed for construction sites, garages, and other demanding working conditions.
Send Inquiry
Description
Send Inquiry

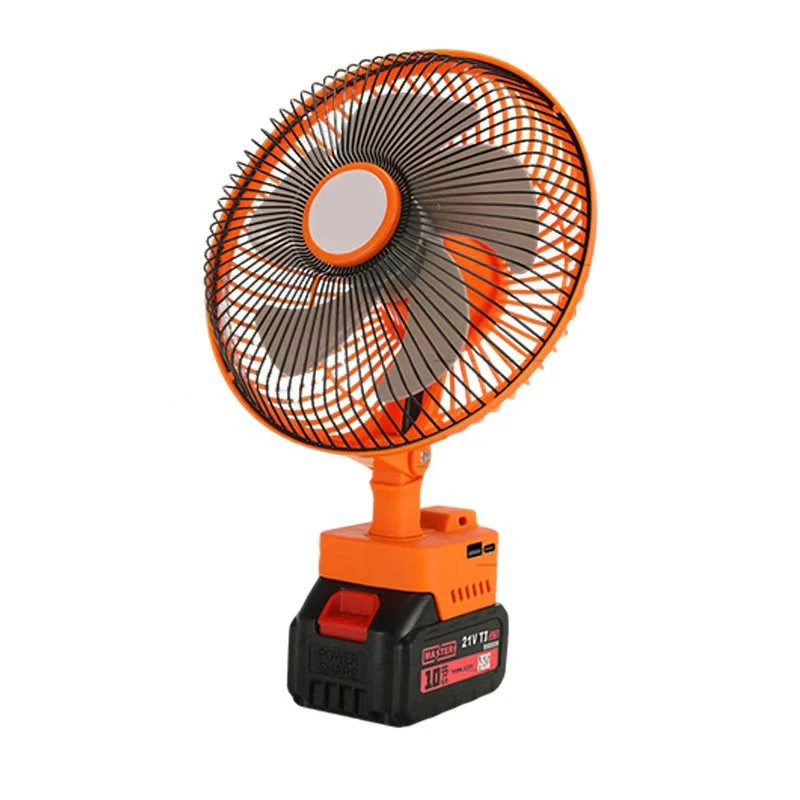

Heavy-Duty Fan for Tough Job Sites



We make these big fans for outside work environments. This 9-inch model is designed for construction sites, garages, and other demanding working conditions.
The fan uses an orange and black body made from impact-resistant plastic. It is designed to withstand frequent movement and accidental impacts. Inside, it uses a 545 brushed copper motor that delivers 45W of power. The blades reach a speed of 4750 r/min.
The fan is equipped with 5 plastic turbo blades. The front guard is made of thickened iron metal, while the rear guard is made of plastic. This design provides better protection for the blades when the fan is moved or exposed to impacts.
The unit is 35cm tall with a 12cm wide base. It weighs only 0.58kg, making it lightweight and easy to carry. The tilt angle can be manually adjusted from 30° to 40°. Two speed settings are available and can be selected with a simple button.
This big fan provides airflow coverage of approximately 10 square meters, helping keep one or two workers comfortable in hot working environments.



Battery Safety and Easy Order Process



We offer an optional battery pack for these big fans. The battery uses A-grade lithium cells, with options of 5, 10, 15, or 20 cells.


The battery includes nine safety protection systems, including protection against overcharging, over-discharging, short circuits, and overheating.


The fan is also equipped with USB and Type-C ports, allowing you to charge mobile devices from the fan. The battery option is required to use this function.


A fully charged battery provides 3 hours or more of operating time. The battery surface temperature remains below 45°C during use.


Each individual box weighs 0.9kg, and a master carton contains 12 units. We support EXW, FOB, and DDP shipping terms.


Our standard payment terms are 30% advance payment, with the remaining balance paid before shipment.


This fan comes with a 12-month warranty. Standard orders are shipped within 10 days. Custom orders require 20 days, and custom samples require 60 working days.


Every unit is tested before packaging as part of our standard quality control process.

product-800-800



Full Product Data Table



Parameter

Details

Fan Size

9 inches (23cm diameter)

Product Size

Height 35cm × Base Width 12cm

Motor & Power

545 Brushed Copper Motor, 45W

Speed

4750 r/min

Gears & Blades

2 Gears / 5 Plastic Turbo Blades

Guard

Metal Thickened Iron Front Guard, Plastic Rear Guard

Battery Voltage

21V (Makita Interface, Battery Optional)

Battery Configuration

Optional 5-20 Cells

Charging Ports

USB + Type-C (Supports Reverse Charging, Battery Required)

Tilt Angle

Manual 30°-40°

Net Weight (Unit)

0.58KG

Packaging

Single Box 0.9KG (26×18×27cm), Master Carton 12 Units / 12.3KG
